Models of Computation

Boolean Circuits

AND/OR/NOT gates
Gate: function
Inputs: arguments to function
In-/Outputs: wires
Circuits: combination of gates
Truth table: all possible combination (look-up table)

XOR

Parity: odd/even
- 0: even
- 1: odd
- 0 is even number, 1 is odd number
works with more than 2 inputs

X	Y	Z	XOR
0	0	0	0
0	0	1	1
0	1	0	1
0	1	1	0
1	0	0	1
1	0	1	0
1	1	0	0
1	1	1	1

Cost of circuit: number of
- AND gates and
- OR gates
- usually NOT gates are not counted (they are too simple)

Truth table:

for $n$ inputs: $2^n$ combinations

Number of functions:

for $n$ inputs: $2^{2^n}$ functions (circuits)

General of XOR:

for $n$ inputs $2^{n-1}+1$ gates needed

Finite State Machines (FSM)

Also called Finite State Automaton (FSA)

Deterministic / Non-Deterministic FSM

Deterministic
- For each arriving event it’s clear what the next state is
Non-deterministic
- For some (or all) events the next state can be more than one (it’s not clear to which state the machine will change)
Any non-deterministic FSM can be turned into a deterministic FSM

Acceptor (Recognizer)

Calculates a Boolean function
All states are either accepting or rejecting for a given input
In graphical notation the accepting states have a double circle
Non-deterministic Acceptor
- accepts if there is any way to accept
- methodically try all possibilities
- ‘Parallel World’ - try all possibilities simultaneously in separate copies of the machine (for complexity theory)

Classifier

Has more than two final states
gives single output when it terminates

Transducer

Produces outputs based on current input and on previous state
2 different types
- Mealy Machine: output depends only on current state
- Moore Machine: output depends on current state and current input
- They can be transformed into each other

Register Machines

A register machine has multiple registers that store positive integers
There are only two possible operations on these registers
1. incrementing ( $+1$ )
2. decrementing ( $-1$ )
- Decrementing a register that holds $0$ fails
There are other (slightly different) definitions of register machines that allow different operations (e.g checking for $0$ )
Register Machines can be graphically represented like FSMs or as a simple list of instructions (programming language)

Example of list of instructions for a Register Machine:

	Action	Next Instruction	Alternative Instruction (if actual instruction fails)
1.	x-	2	4
2.	y+	3	-
3.	x-	1	8
4.	y-	5	6
5.	x+	4	-
6.	x-	7	5
7.	x-	9	HALT
8.	y-	9	3
9.	x+	10	-
10.	x+	11	-
11.	x+	8	-

Register Machines and Turing Machines can simulate each other in polynomial time
For each Register Machine with more than 2 registers ( $N$ ) there is an equivalent Register Machine with only 2 registers
- The $N$ registers need to be encoded
Whenever a loop ends (in a 2 Register Machine)
- one register is $0$
- in the other register is some information available

Fractran

Tilings

Tiles as Turing Machine

Tiled plain can be seen as Turing Machine over time
- one dimension (horizontal, x) is tape
- other dimension (vertical, y) is time
- so each row shows the tape at a given time

3 kind of tiles needed

Kind of Tile	Use
TAPE	One for each symbol in the alphabet
ACTION	One tile for each transition of the TM
PREPARE	Two for each (symbol, state) pair

Seed row: initial configuration
We can tile the floor with the tiles if TM halts

Cellular Automata

Inspired by natural cells
World is grid of cells
Cells have state (e.g. dead/alive)
Next state of a cell is calculated by
- actual state of the cell
- actual state of the neighbor cells
All cells work with same rules
Time is discrete (round based)
Often used in physics
Good model for unreliability
parallel, local comuptation
can model a Turing Machine

The Model

$N$ -dimensional array of cells (infinitely large)
Finite number of states
- each cell is in some state
At each time step, each cell updates its state based on
- it’s own state
- the states of its neighbors
Variations:
- number of dimensions
- neighborhood size (and geometry)
- asynchronouns
- error-prone (add randomness)
- finite size
- grid type

Variants

Conway’s Game of Life
- My implementation (Qt, C++)
Toom’s rule
- asymetrc rule

Lambda Calculus

Meta-Mathematics
Turing Machines simulate a person that calculate (State: Mind, Tape: Paper)
Lambda Calculus: about functions

Syntax

Traditional Syntax:

f(x) = \frac{e^x - sin(x)}{x+3}

Lambda Syntax:

\lambda x. \frac{e^x - sin(x)}{x+3}

Functions in lambda calculus don’t have names
- Just put the function completely, where it is used
- Anonymous functions
Functions: ‘Plugging in’ arguments
Functions return other functions (Currying)

For example:

((\lambda xy. 2x + y) 2 ) 3 = (\lambda y. 4 + y) 3 = 4 + 3 = 7

Can get rid of
- function names
- multi-argument functions

Main Operations

$\beta$ -reduction: apply a function to an argument using substitution
- Reduction is an optimistic term since the result of the $\beta$ -reduction can be bigger then the expression before
$\alpha$ -conversion: changing a functions ‘argument symbol’ ( $\lambda x.x \equiv \lambda y.y$ )
$\eta$ -conversion: $\lambda v. f v \equiv f$ because $(\lambda v. f v) a \equiv f a$

Church Numerals

Numbers can be encoded as functions
Arbitrary encoding of numbers suggested by church

Each number is a function that takes 2 arguments: $f$ and $x$ :

\begin{align*} 0 :&= \lambda f.\lambda x. x\\ 1 :&= \lambda f.\lambda x. f x\\ 2 :&= \lambda f.\lambda x. f (f x)\\ 3 :&= \lambda f.\lambda x. f (f (f x))\\ \cdots \\ n :&= \lambda f.\lambda x. f^n x \end{align*}

The number $n$ is a function that takes a function $f$ as argument and applies it $n$ -times to the second argument $x$

Example: $(5 inc) x$ : apply function $inc$ $5$ -times to $x$

Lambda Calculus Expressions

Using just substitution step to calculate
- seems complex, but only one operation needed: substitution

Variables

$a$ , $b$ , $c$ …
representing functions

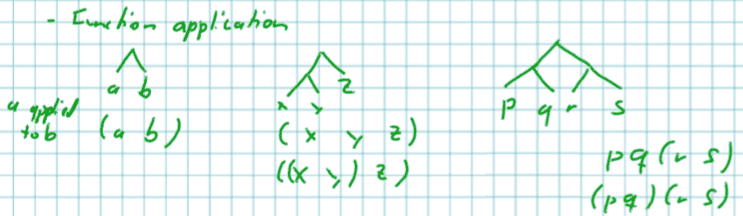

Function Application

$(a b)$ : $a$ applied to $b$

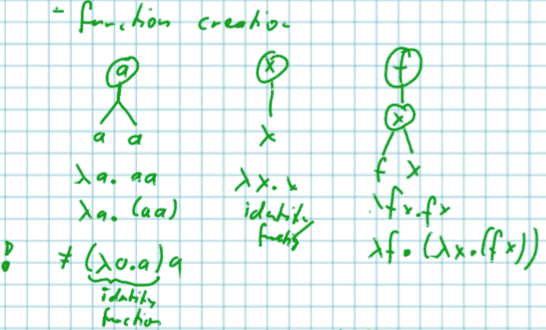

Function Creation

$\lambda a. aa$

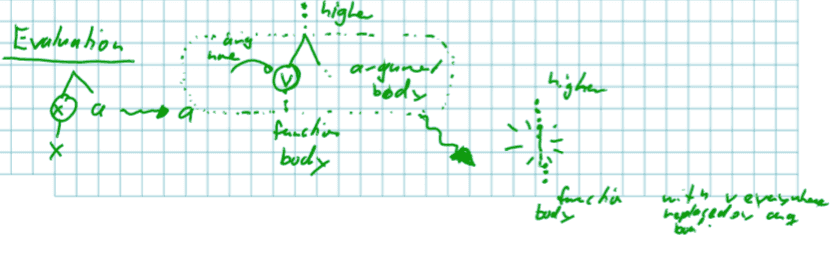

Evaluation

Example:

Examples

Increment

\lambda k f x. f ( k f x)

Example:

increment $2$

\begin{align*} \underbrace{(\lambda k f x. f ( k f x))}_{inc}\underbrace{(\lambda f x. f ( f x))}_{2} &= \\ (\lambda f x. f ( (\lambda f x. f ( f x)) f x)) &= \\ (\lambda f x. f ( f ( f x))) \end{align*}

Addition

Multiplication

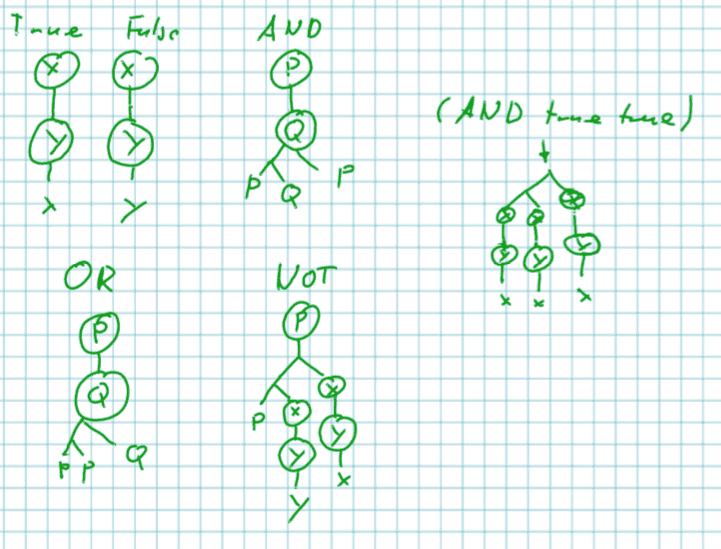

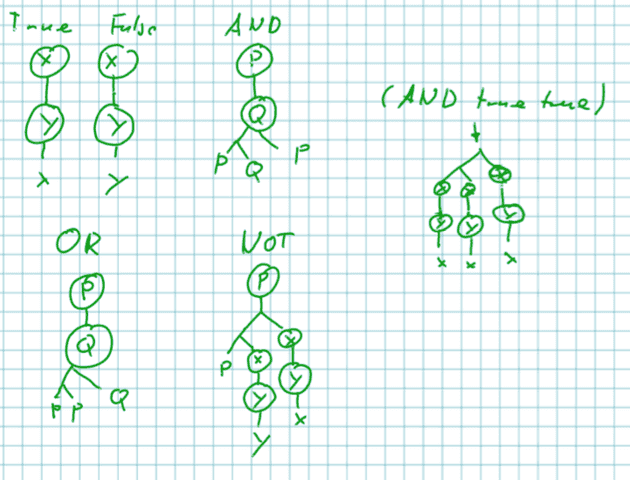

Boolean Logic

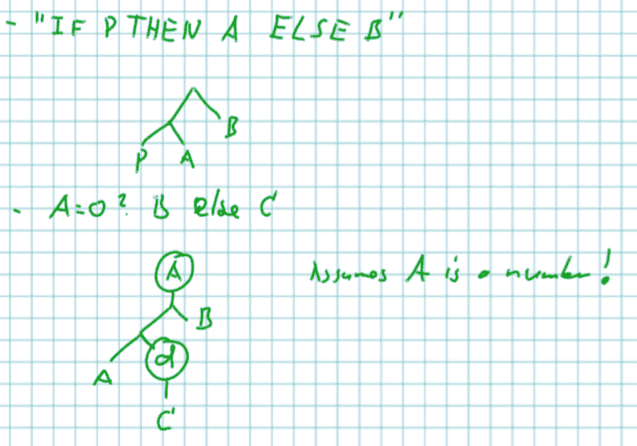

If-Then-Else

Pair

Conclusion

No distinction between code and data: everything is code!
No structure is safe from substitution (safety issue)
Data has to be run, can’t be examined

Recursion

in $\lambda$ -calculus a function can’t reference (call) itself since there are no names for functions
Tail-call recursion: in some cases the same stack frame can be reused for recursive functions
How can we build an infinite loop (recursion)?

This structure rebuilds itself infinitely:

\Omega = (\lambda w. w w) (\lambda w. w w)

Y-Combinator

See Wikipedia

and The Y Combinator (no, not that one).

Y = \lambda f. (\lambda x. f (x\; x))(\lambda x. f (x \;x))

Beta recursion gives:

\begin{align*} Y g &= \lambda f. (\lambda x. f (x\; x))(\lambda x. f (x\; x)) g \\ &= (\lambda x. g (x\; x)) (\lambda x. g (x\; x)) \\ &= g ((\lambda x. g (x\; x)) (\lambda x. g (x\; x))) \\ &= g (Y\; g) \end{align*}

Only way to do a loop if you don’t know in advance how many iterations the loop needs to be done
Functions can’t see their own structure
- Needs to be provided as argument so the function can reproduce itself: ‘twin’-functions

Numbers

Numbers are an abstract concept
It’s only possible to manipulate representations of numbers

There Are a lot of different representations of numbers.

Each representation has it’s pros and cons.

Decimal
Roman Numerals
Binary
Two’s complement
Binary with digits up to 2 (Redundant binary representation)
- Addition can be faster
- Logical operation are slower
Ternary
Church Numerals
Prime Factorization: $1, 2, 3, 2^2, 5, 2\cdot 3, 7, 2^3, 3^2, \ldots$
- Multiplication and Factorization is easy
- Increment by one is hard
Chinese remainder theorem
- Comparing two numbers is hard
p-adic number
- related to two’s complement

Tag Systems

Tape with a starting string
Reading and deleting at the beginning (left)
Appending (writing) at the end (right)

2-Tag System

reads 1 symbol at the beginning of the tape
appends a string at the end of the type
- appended string depends on read symbol
removes 2 symbols at the beginning of the tape

Example: Test for odd/even number

Alphabet: $\Sigma = \{C_1, C_2,C_3\}$
Rules:
- $C_3 \rightarrow \epsilon$
- $C_1 \rightarrow C_2 \; O$
- $C_2 \rightarrow E$
$\epsilon$ : empty word
$O$ : Odd
$E$ : Even
$C_1 \; C_1 \; (C_3)^x$
$a^x$ : symbol a is repeated $x$ times
the given rules show if $x$ is odd or even

Example even:

\begin{align*} C_1 C_1 C_3 C_3 C_3 C_3 \rightarrow \\ C_3 C_3 C_3 C_3 C_2 O \rightarrow \\ C_3 C_3 C_2 O \rightarrow \\ C_2 O \rightarrow \\ E \end{align*}

Example odd:

\begin{align*} C_1 C_1 C_3 C_3 C_3 \rightarrow \\ C_3 C_3 C_3 C_2 O \rightarrow \\ C_3 C_2 O \rightarrow \\ O \end{align*}

Example: Power of Two

\begin{align*} 2^n &\rightarrow n \\ C_1 &\rightarrow C_1 C_2 C_4 C_5 \\ C_2 &\rightarrow \epsilon \\ C_3 &\rightarrow C_3 \\ C_4 &\rightarrow C_4 C_5 \\ C_5 &\rightarrow C_6 \end{align*}

Starting with:

(C_3)^{2n}C_1C_1 \rightarrow (C_6)^n

For $n=2$ :

\begin{align*} C_3 C_3 C_3 C_3 C_1 C_1 \rightarrow \\ C_3 C_3 C_1 C_1 C_3 \rightarrow \\ C_1 C_1 C_3 C_3 \rightarrow \\ C_3 C_3 C_1 C_2 C_4 C_5\rightarrow \\ C_1 C_2 C_4 C_5 C_3 \rightarrow \\ C_4 C_5 C_3 C_1 C_2 C_4 C_5 \rightarrow \\ C_2 C_4 C_5 C_4 C_5 C_3 \rightarrow \\ C_5 C_4 C_5 C_3 \rightarrow \\ C_5 C_3 C_6 \rightarrow \\ C_6 C_6 \end{align*}

Simulation of Turing Machines with Tag Systems

Some of the notes here are taken from ‘Understanding Computation’ by Tom Stuart.

Tape uses only 2 characters: $0$ and $1$
- $0$ is the blank character
Split the tape into two pieces
- left part
  - character under the head
  - all characters left of the head
- right part
  - all characters right of the head
Interpret left part as binary number
Interpret right part as binary number written backwards
Encode those 2 numbers as string (suitable to be used for Tag System)
Simple operations:
- Simulate
  - reading from tape
  - writing to tape
  - moving the head
- with simple operations
  - doubling / halfing
  - incrementing / decrementing
  - odd / even (parity) check
  - …
- e.g
  - move head to right:
    - doubling left number
    - halving right number
  - reading from tape
    - check if left number is even/odd
  - writing
    - $1$ : incrementing number
    - $0$ : decrementing number
Current state of simulated Turing machine represented by different encoding
- e. g
  - State 1: use a, b, c
  - State 2: use d, e, f
  - …
Convert each Turing Machine rule into a Tag Systems that rewrites the current string in the expected way
Combine all the Tag Systems to make a large one the simulates every rule of the Turing Machine

Cyclic Tag Systems

This are simplified Tag Systems

The tape is allowed only to have 2 symbols $0$ and $1$
A string is only appended if a $1$ is read
The rules for appending strings is ordered
The deletion number is $1$

Algorithm:

In each round:

Read next rule in rule-set
Read next symbol on tape
- if $1$ : append the string from the rule set to the tape
- if $0$ : ignore the rule
Remove the last read symbol from the tape
Start from the beginning with reading the next rule

A Cyclic Tag System can simulate a normal Tag System. See ‘Understanding Computation’ by Tom Stuart on how to do that.

Diophantine Equations

Primitive Recursive Functions

Recursion can do a lot!
Functions are defined using itselves or other functions
Each function has 2 definition:
1. Definition for argument $0$
2. General definition

Function	Name	Definition ( $\text{if } n=0$ )	Definition ( $\text{if } n=S(m)$ )
$S(n) = n + 1$	Successor	intrinsic/primitive	-
$A(n,a)=n+a$	Addition	$a$	$S(A(m,a))$
$M(n,a)=n\cdot a$	Multiplication	$0$	$A(a,M(m,a))$
$E(n,a)=a^n$	Exponentiation	$1$	$M(a,E(m,a))$
$V(n)=sign(n)$	Positivity	$0$	$1$
$P(n) = n-1$	Predecessor	$0$	$m$
$D(a,n) = a-n$	Subtraction	$a$	$P(D(n,m))$
$R(n,a)=n \bmod a$	Remainder	$0$	$M(S(R(m,a)),V(D(P(a),R(m,a))))$
$C(n,a)=\prod_{i=2}^{n+1} a \bmod i$	‘mod Product’	$0$	$M(C(m,a),R(a,(S(S(m)))))$
$Z(n)=1$ if prime ; $0$ else	Primality	$0$	$V(M(m,(P(m),S(m))))$

Infinite loops not possible
Can simulate a Turing Machine only for a given number of steps (weaker than TM’s)
- Number of iterations of a loop need to be known from beginning
- Infinite loops are not possible
Not considierd as universal system

Some Simple Models

Chemical Reaction Networks

Inspired by chemical reaction equations

\begin{matrix} A & \rightarrow & B \\ C & \rightarrow & D \\ B + C & \rightarrow & A \\ A + D & \rightarrow & A + 2E\\ B + E & \rightarrow & B + D \end{matrix}

Nondeterministic: any reaction can happen at any time
Primitive Recursive Functions can always compute this in bounded time, even if answer is $\infty$ .
Chemical Reaction Networks are not stronger than Primitive Recursive Functions.

Petri Nets

A lot of different form of Petri Nets
Components
- Transition (edges)
- Places (nodes)
- Tokens (arcs) travel from transitions to places (or vice versa)
Nondeterministic
Similar to (and as powerful as) Chemical Transition Networks
Used to simulate concurrency in distributed systems (but not turing-complete)

Vector Addition Systems

Rules: Starting position and list of possible moves (like a knight in chess)
no coordinate ca go negative
N-dimensional is posible

A	B	C	D	E	F	G
-1	1	0	0	0	0	0
0	0	-1	1	0	0	0
1	-1	-1	0	0	0	0
-1	0	0	-1	0	1	0
1	0	0	-1	0	1	0
0	-1	0	0	-1	0	1
0	1	1	0	0	0	-1

7 moves for 7 dimensions
Non-deterministic
Same as Chemical Reduction Networks
- Put equations in vectors (linear combination)

Unordered Fractran

Similar to fractran
Choose any fraction randomly that yields an integer when multiplied with given number
non-deterministic

Broken Register Machine

decrementing a register might fail even if register could be decremented

General Notes

A lot of these systems get more powerful if they allow prioritizing
determinism: turing complete

Halting Problem

Suppose a Turing Machine “A” can take $Enc_1(table)$ , $Enc_2(tape)$ and decide wether a TM with the given table will ever halt, if started on the given tape.

This is impossible!

Idea (proof):

Make a machine that does the opposite of whatever machine you give it (halt or not halt)
The goal is to feed this machine to itself
Analyze what machines do when they are fed to themselves

Universal Machine

It’s possible to create a “universal” machine, which just (slowly) does the same thing that the machine described to it would do.

a programmable Turing Machine
see Universal Turing machine

Content
